RSC系列有填料圓筒帽形快速熔斷器產品詳細說明：

RSC系列有填料圓筒帽形快速熔斷器

產品型號：RSC 圓筒帽形快速熔斷器
產品概述：有填料圓筒帽形快速熔斷器采用GB13539、IEC60269、VDE0636標準! 適用于交流50Hz，額定電壓交流240-1000V，額定電流至125A，作為半導體器件短路故障保護。

一、安裝尺寸

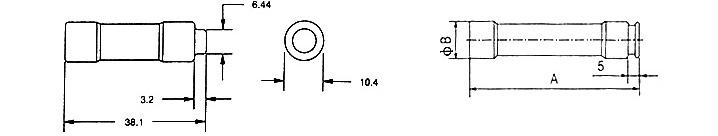

圖1

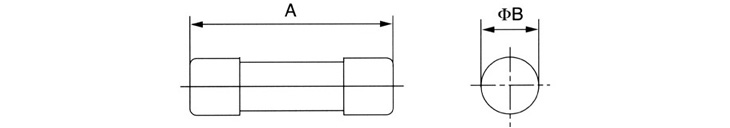

圖2     圖3

二、技術參數 額定電壓：240-1000V 分?jǐn)嗄芰Γ?00KA 功能等級：aR/gR

序號 No.	尺碼 Size	額定電壓 Rated Voltage(V)	電流等級 Class Rating(A)	尺寸Dimension(mm)
				φB	A	附圖
1	φ5×20	250/500	0.5,1,2,4,6,8,10,12,13	5	20	圖1
2	φ5×25	250/500	0.5,1,2,4,6,8,10,12,16	5	25	圖1
3	φ6×20	250/500	0.5,1,2,4,6,8,10,12,16	6	20	圖1
4	φ6.3×23	240	0.5,1,2,4,6,8,10,12,16,20	6.3	23	圖1
5	φ6.3×25	250/500	0.5,1,2,4,6,8,10,12,16,20	6.3	25	圖1
6	φ6.3×31.5	250/500	0.5,1,2,4,6,8,10,12,16,20	6.3	31.5	圖1
7	φ8.5×23	250	0.5,1,2,4,6,8,10,12,16	8.5	23	圖1
8	φ8.5×31.5	500	0.5,1,2,4,6,8,10,12,16,20,25	8.5	31.5	圖1
9	φ8.5×36	380/500	2,4,6,8,10,12,16,20,25,32	8.5	36	圖1
10	φ10×30	380/500	2,4,6,8,10,12,16,20,25,32	10	30	圖1
11	φ10.3×25.8	250	2,4,6,8,10,12,16,20,25,32	10.3	25.8	圖1
12	φ10.3×31.5	250	2,4,6,8,10,12,16,20,25,32	10.3	31.5	圖1
13	φ10.3×34	380/500	2,4,6,8,10,12,16,20,25,32	10.3	34	圖1
14	φ10.3×38	380/500	2,4,6,8,10,12,16,20,25,32	10.3	38	圖1
15	φ10.3×57	500	2,4,6,8,10,12,16,20,25,32	10.3	57	圖1
16	φ14.3×38	500	2,4,6,8,10,12,16,20,25,32,40,50,63	14.3	38	圖1
17	φ14.3×45	500	2,4,6,8,10,12,16,20,25,32,40,50,63	14.3	45	圖1
18	φ14.3×67	500	2,4,6,8,10,12,16,20,25,32,40,50	14.3	67	圖1
19	φ15×50	500	20,25,32,40,50	15	50	圖1
20	φ16.7×35	380	16,20,25,32,40,50,63	16.7	35	圖1
21	φ18×37	500	2,4,6,8,10,12,16,20,25,32,40,50,63	18	37	圖1
22	φ18×50	500	2,4,6,8,10,12,16,20,25,32,40,50,63	18	50	圖1
23	φ20.5×40	600	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	40	圖1
24	φ20.5×76	250/600	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	76	圖1
25	φ20.5×114	250/600	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	114	圖1
26	φ20.5×127	250/600	0.5,1,2,4,6,8,10,12,16,20,25,32	20.5	127	圖1
27	φ21×58	600	2,4,6,8,10,12,16,20,25,32	21	58	圖1
28	φ27×60	600	32,40,50,63,80	27	60	圖1
29	φ27×139	250/600	32,40,50,63	27	139	圖1
30	φ27×147	250/600	32,40,50,63	27	147	圖1
31	φ10.3×38T	380/500	2,4,6,8,10,12,16,20,25,32	10.3	38	圖2
32	φ14.3×51H	500	2,4,6,8,10,12,16,20,25,32,40,50,63	14.3	51	圖3
33	φ20.5×76H	250/600	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	76	圖3
34	φ20.5×114H	250/600	2,4,6,8,10,12,16,20,25,32,40,50,63	20.5	114	圖3
35	φ20.5×127H	250/600	0.5,1,2,4,6,8,10,12,16,20,25,32	20.5	127	圖3
36	φ22.2×58H	380/600	16,20,25,32,40,50,63,80,100,125	22.2	58	圖3
37	φ27×139H	250/600	32,40,50,63	27	139	圖3
38	φ27×147H	250/600	32,40,50,63	27	147	圖3
