C101G直滑電位器電氣特性
全阻值 :500Ω-1MΩ
全阻值公差:±20%
阻抗特性型式:A,B,C,D
雜音:Less than 100mV
絕緣阻抗:5~15mm:More than 50MΩat DC 100V 20mm:More than 50MΩat DC 250V
耐電壓:5~15mm:1 minute at AC 100V 20mm:1 minute at AC 250V
殘留阻值:Term.1~2:Less than 10Ω Term.2~3:Less than 10Ω
同步誤差(雙聯):-40dB~0dB±3dB
額定電壓
B線性:4mm,5mm:AC 50V 10mm 15mm:AC 100V 20mm:AC 200V
其它線性:4mm,5mm:AC 25V 10mm,15mm:AC 50V 20mm:AC 150V
額定功率(單聯/雙聯)
B線性:4mm,5mm:0.01W/0.005W 10mm:0.03W/0.015W 15mm:0.05W/0.025W 20mm:0.1W/-
其它線性:4mm,5mm:0.025W/0.012W 10mm:0.015W/0.01W 15mm:0.025W/0.01W 20mm:0.05W/-

C101G直滑電位器機械特性

作用力:20~200 gf.cm
段位滑出力(only Center Click)
作用力:30~300 gf.cm
止動強度:2.50Kgf.cm Min(from the base level to a point of 2mm)
滑柄水平晃動量:2(2xL)/25mm Max.(L:Level length both sides)
水平推拉強度:1.0 Kgf Min. at 10sec.
耐久性能
旋轉壽命:5000 Cycles

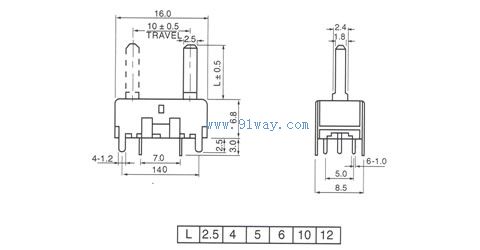

C101G直滑電位器
